Road, Gravel, and adventure Bike
Buyer’s Guide
Road, Gravel, Touring & More—Find the Ride That Fits Your Life
Drop bar bikes have come a long way from skinny-tire road racers. Today’s options cover everything from all-day comfort rides and dirt-road adventures to high-performance racing and cross-country tours. Whether you’re just starting out or upgrading to a new ride, this guide will walk you through the different styles of drop bar bikes—and help you find the one that fits your goals.
Adrenaline - Adventure - anytime - anywhere
Frame Materials: Carbon vs. Aluminum vs. Steel vs. Titanium
Weight, comfort, price, and ride feel—your frame makes a difference.
Just like in mountain biking, the material your frame is made from affects everything from weight and stiffness to comfort and price.
Aluminum: Affordable, lightweight, and stiff. Great for most riders.
Carbon Fiber: Lightweight, stiff, and dampens road vibration. Common in performance and endurance bikes.
Steel: Durable and smooth-riding, popular for touring and adventure bikes.
Titanium: Boutique-level comfort and longevity with carbon-like performance.

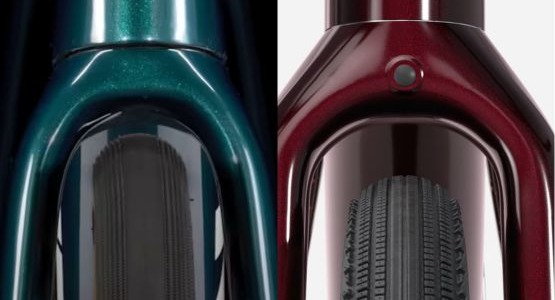

Tire Clearance & Wheel Size: Bigger Isn’t Always Slower
The modern drop bar bike isn’t limited to skinny tires.
Tire clearance impacts comfort, traction, and versatility. A race road bike might max out at 32mm, while gravel bikes can clear 50mm tires or more.
Narrow tires (23–32mm): Fast-rolling, lower weight
Mid-width (33–38mm): Ideal for endurance road and light gravel
Wide tires (40–50mm+): Maximum grip and comfort on loose terrain
Wider tires offer better comfort at lower pressures—especially helpful on rough roads or gravel.

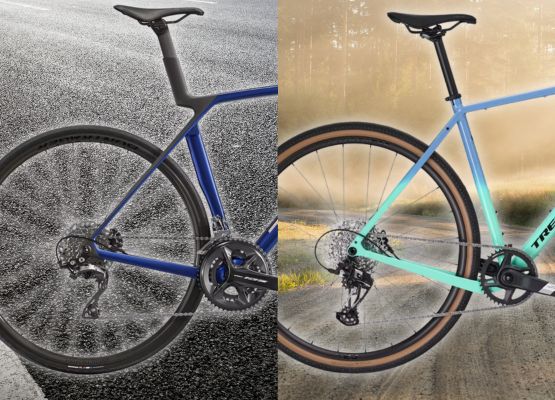

Gearing: 1x vs. 2x Drivetrains
Climbing, cadence, simplicity—choose the setup that matches your riding style.
2x Drivetrains (Double): Common on road bikes. Offers a wide gear range with small steps between gears—great for maintaining cadence.
1x Drivetrains (Single): Popular on gravel and adventure bikes. Simpler, with fewer parts to maintain and no front derailleur. Usually paired with wide-range cassettes.
E-bikes tend to use 1x drivetrains since motor assistance covers gaps in gear range.

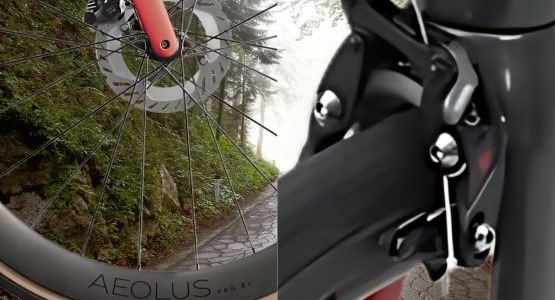

Brake Systems: Rim vs. Disc
Stopping power matters — especially when conditions get rough.
While rim brakes were once the standard on road bikes, they’re now quickly becoming a thing of the past. Nearly all modern drop bar bikes—road, gravel, endurance, and even triathlon—come equipped with disc brakes for one simple reason: they stop better. Disc brakes offer superior performance in wet, muddy, or steep conditions, and allow for wider tire clearance and more confident control.
Here’s the quick breakdown:
Disc Brakes – Found on nearly every new bike. Come in two versions:
Hydraulic: More powerful, smoother modulation, self-adjusting
Mechanical: Easier to service, more budget-friendly
Rim Brakes – Lighter and less expensive, but now rare on new bikes. You’ll still see them on some used bikes or legacy racing builds, but even the high-performance road and triathlon markets are moving fully to disc.
Pro Tip: If you’re shopping for a new bike, expect disc brakes — and embrace them. They’re not just better in the rain; they’re better, period.
Dropbar subgenres
Drop bar bikes defy rigid categories—what one rider calls an endurance bike, another might see as an all-road, a tourer, or even a gravel bike. The key is understanding the kind of riding you want to do, and we’ll help you find the bike that best matches your needs.

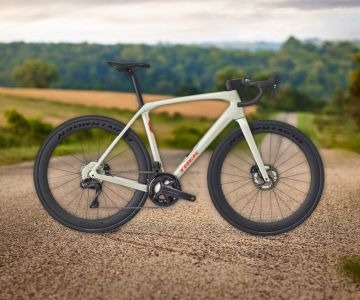

Endurance Road Bikes
Smooth. Comfortable. Built for the Long Haul.
Endurance road bikes are made for longer rides on pavement. With a more relaxed geometry than race bikes and room for wider tires, they deliver comfort without sacrificing speed. Perfect for fondos, fitness rides, and those just getting into road cycling.
Typical Specs:
Tire Clearance: 30–38mm
Geometry: Upright for comfort and stability
Frame Materials: Aluminum, carbon, sometimes steel
Best For: Long-distance riders, commuters, and cyclists who value all-day comfort
Looking for a boost? E-road bikes like the Trek Domane+ give you subtle pedal assist for longer, hillier rides—without sacrificing the road feel.

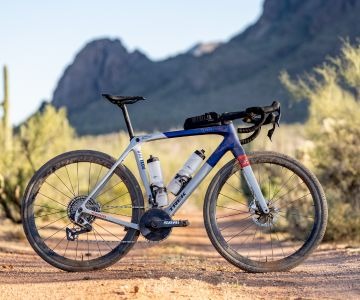

Gravel Bikes
Adventure-Ready. All-Terrain. Versatile.
Gravel bikes are the multi-tool of the bike world. With wider tires, relaxed geometry, and clearance for fenders and bags, they’re designed to handle pavement, gravel, dirt, and everything in between.
Typical Specs:
Tire Clearance: 38–50mm+
Geometry: Stable and confident on loose surfaces
Frame Materials: Aluminum, carbon, steel, or titanium
Mounts: Multiple—racks, fenders, bottles, bags
Best For: Adventure riders, commuters, bike-packers, and riders who want one bike to do it all

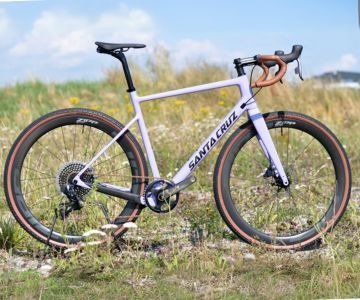

Gravel e-bikes like the Santa Cruz Skitch let you go farther, climb easier, and explore more.

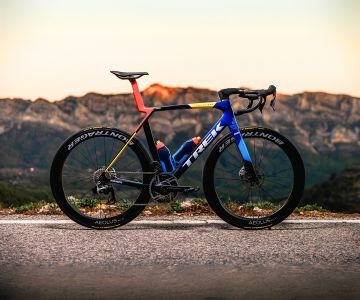

Performance / Race Road Bikes
Lightweight. Aggressive. Fast.
These bikes are all about speed and efficiency. They have a lower, more aerodynamic position, stiffer frames, and race-tuned components. Great for competitive riders, group rides, or anyone chasing their personal best.
Typical Specs:
Tire Clearance: 23–32mm
Geometry: Aggressive and aerodynamic
Frame Materials: Carbon or lightweight aluminum
Best For: Racers, experienced riders, and performance-focused cyclists

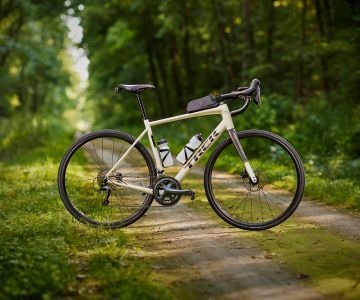

All-Road / Adventure Bikes
Fast on Pavement. Capable on Gravel. Built for the Unexpected.
All-Road bikes bridge the gap between endurance road and gravel. With clearance for mid-width tires and endurance geometry, they’re ideal for mixed-surface rides, fast commutes, or fitness loops with a little dirt thrown in.
Typical Specs:
Tire Clearance: 32–42mm
Geometry: Endurance-style with extra stability
Mounts: Often include fenders, racks, and extra bottles
Best For: Riders who want a “do-everything” road bike with added capability

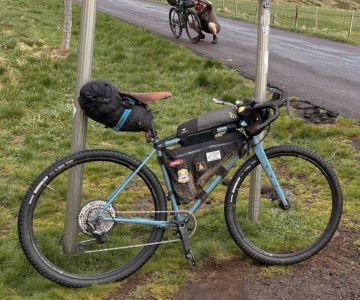

Touring Bikes
Sturdy. Comfortable. Built to Carry It All.
Touring bikes are designed for long-haul adventures and loaded rides. With rugged frames, upright geometry, and mounts for racks, fenders, and gear, these bikes are perfect for bikepacking, multi-day tours, and everyday commuting.
Typical Specs:
Tire Clearance: 32–55mm
Frame Materials: Steel or aluminum
Mounts: Racks, fenders, bottle cages, frame bags
Best For: Tourers, commuters with cargo, and riders planning big journeys

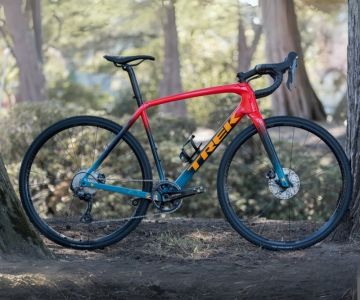

Cyclocross Bikes
Race-Ready. Quick-Handling. Built for Mud and Speed.
Cyclocross bikes are built for tight courses, rough terrain, and fast transitions. They have race-focused geometry and knobby tires, and many models double as light-gravel bikes or off-road commuters.
Typical Specs:
Tire Clearance: 33–38mm
Geometry: Tight and aggressive
Mounts: Limited—focused on racing
Best For: CX racing, commuting, or fast and light off-road exploration

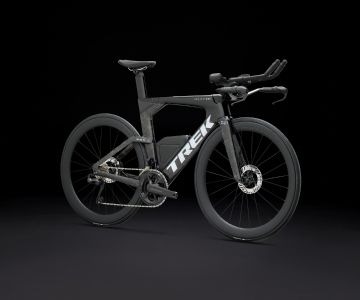

Triathlon / Time Trial Bikes
Aero. Purpose-Built. Engineered for Speed Against the Clock.
Triathlon and TT bikes are designed to maximize speed and minimize drag over flat or rolling courses. With aggressive aerodynamic frames, integrated handlebars, and rider-forward geometry, they put you in the fastest position possible. These bikes are all about solo performance—built for riders who want to go fast without drafting.
Typical Specs:
Tire Clearance: 23–28mm (sometimes more in modern tri bikes)
Geometry: Steep seat angle and long reach for aero efficiency
Features: Aero tube shaping, deep-section wheels, integrated hydration and storage
Best For: Triathletes, time trial racers, and solo speed seekers

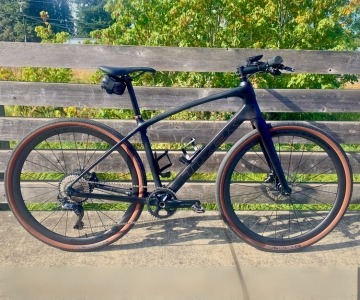

Flat Bar Gravel Bikes
Confidence and Control—No Drop Bars Needed.
Flat bar gravel bikes offer all the versatility of drop bar gravel bikes, but with a more upright position and flat handlebars for improved visibility and handling. They’re great for urban riders, newer cyclists, or anyone who prefers mountain-bike-style control.
Typical Specs:
Tire Clearance: 38–50mm
Geometry: Similar to gravel bikes, but adapted for flat bars
Mounts: Full accessory support for commuting and bikepacking
Best For: Commuters, casual riders, and mixed-terrain explorers who prefer flat bars
Flat bar gravel e-bikes are also available—perfect for errands, adventures, or just ditching the car.
A word on e-bikes
Not just for commuters—e-assist drop bar bikes are changing the game.
Whether you want to ride farther, climb easier, or stay with the group, electric drop bar bikes can extend your range and enjoyment. Available in gravel, endurance road, and even touring styles, they’re an increasingly popular option.
Most use discreet mid-drive or hub motors with internal batteries for a sleek, natural ride feel.

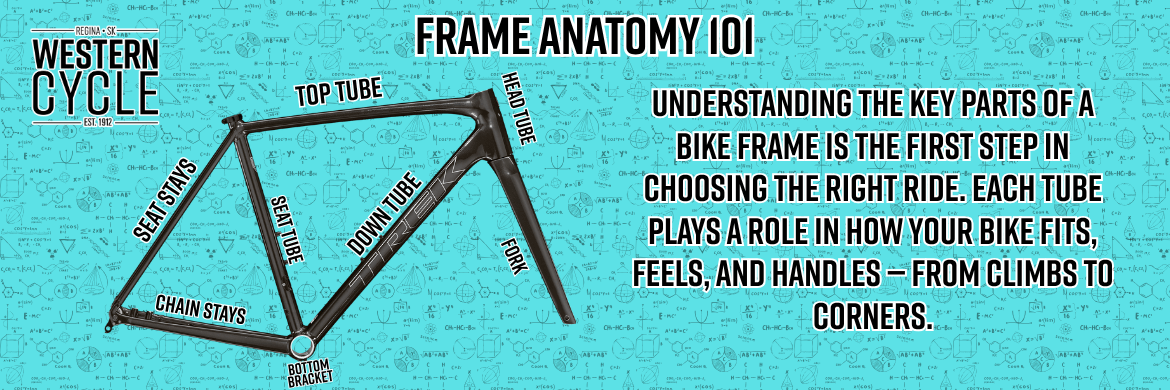

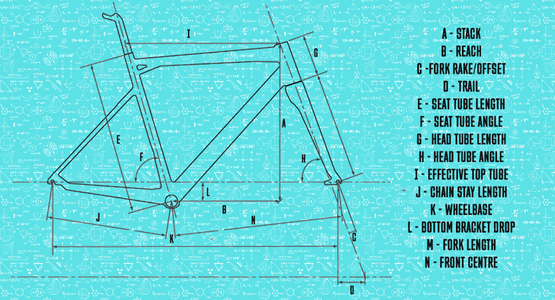

Geometry: How Frame Angles and Tube Lengths Affect Fit & Handling
A bike's geometry — the angles and lengths of the tubes in its frame — plays a huge role in how it fits, handles, and feels on the road or trail. A longer top tube stretches the rider into a more aerodynamic, aggressive position for speed and efficiency, while a shorter top tube offers a more upright, relaxed fit that’s ideal for endurance, commuting, or casual riding.
One of the most important geometry considerations is reach — the horizontal distance from the bottom bracket to the top of the head tube. This gives you a clear sense of how far you’ll be stretched when riding in a neutral or aggressive position. Stack, the vertical distance from the bottom bracket to the same point on the head tube, tells you how tall the front end of the bike is. A longer reach and lower stack typically result in a racier, more aggressive fit, while a shorter reach and taller stack are better for upright comfort and control.
Seat tube angle influences pedaling position and power delivery. A steep seat angle positions the rider over the bottom bracket for maximum efficiency — common in performance-oriented bikes. A more relaxed seat angle shifts the rider back slightly, offering greater comfort and traction, especially when climbing on looser surfaces.
Other key measurements like wheelbase (the distance between the front and rear axles), chainstay length, and bottom bracket height also shape a bike’s personality. Longer wheelbases improve stability at speed and under load, while shorter wheelbases make the bike feel quicker and more nimble. A low bottom bracket lowers your center of gravity for confident cornering, but may increase the risk of pedal strikes on technical terrain.
Together, these geometry specs define how a bike behaves — whether it’s tuned for speed, comfort, control, or adventure — and they’re key to finding the perfect fit for your riding goals.
Quick Reference: Drop Bar Bike Comparison
| Bike Type | Typical Tire Width | Geometry and Handling | Primary Use |
|---|---|---|---|
| Race Road | 23-28mm | Aggressive, Low Stack height, Quick Handling | Competitive road racing, criteriums, fast group rides |
| Endurance Road | 28-35mm | More Upright, Stable, Comfort-Oriented | Long-distance rides, sportives, fitness, club rides |
| Gravel | 35-50mm+ | Relaxed, Long Wheelbase, Off-Road Capable | Gravel roads, multi-surface routes, bike-packing |
| All-Road / Adventure | 30-45mm | Balanced, Versatile, Moderate Reach | Mixed terrain, commuting, touring, “one bike” setups |
| Touring | 32-45mm+ | Stable Under Load, Longer Chainstays | Multi-day trips, heavy loads, global touring |
| Flat Bar Gravel | 35-50mm+ | Upright, Stable, Traffic Friendly | Commuting, city riding, gravel path cruising |
| Cyclocross | 33-38mm (UCI max 33mm) | Snappy, High Bottom Bracket, Tight Geometry | Short, fast, off-road races with obstacles |
| Triathlon / TT | 23–28mm | Very Aggressive, Aero Optimized | Solo time trials, triathlon races, training for speed |
| E-Bike (Road/Gravel) | 32-50mm+ | Varies By Style, Often Endurance-Like | Long rides, hills, commuting, riding with faster groups |
more to consider
Get the Perfect Fit
Even with the right size and geometry, dialing in your position makes a huge difference in comfort, performance, and injury prevention. At Western Cycle, our in-house bike fit expert, Bert Seidel, brings years of experience to every fitting — using precise measurements, rider feedback, and real-world know-how to fine-tune your position. From saddle height and handlebar reach to cleat alignment and posture, a professional fit helps you ride longer, faster, and more comfortably.
Learn more about our Bike Fit Services »

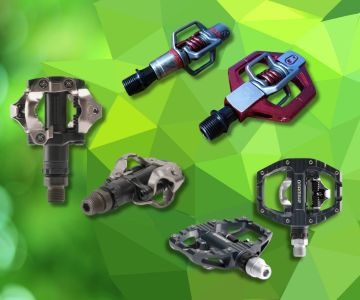

Pedals: Flats vs. Clipless (SPD vs. SPD-SL)
Whether you're clipping in for max efficiency or keeping things simple with flat pedals, your pedal choice affects comfort, control, and performance.

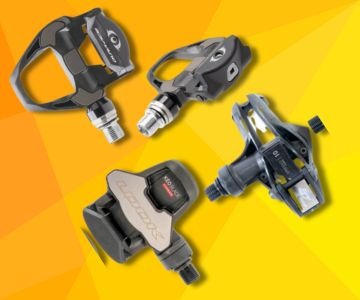

SPD-SL (Road-style Clipless Pedals)
SPD-SL pedals use a three-bolt cleat that protrudes from the shoe and offers a larger contact area. That means better power transfer and stability, making them ideal for performance road cycling—but less walkable off the bike.
Why they work:
Best power efficiency and stability
Lightweight for racing setups
Ideal for smooth, continuous road rides
Best for:
Road racing
Long-distance road riders
Riders prioritizing speed over walkability
SPD (Mountain-style Clipless Pedals)
SPD pedals are the go-to for gravel, touring, and commuting. The two-bolt cleats are recessed into the sole, making them easy to walk in, and they shed mud and debris well.
Why they work:
Easier to clip in/out than road pedals
Walkable shoes = great for mixed-surface riding and exploring
Durable in rough conditions
Best for:
Gravel bikes
Bikepacking and touring
All-road and endurance riders who may be walking off the bike

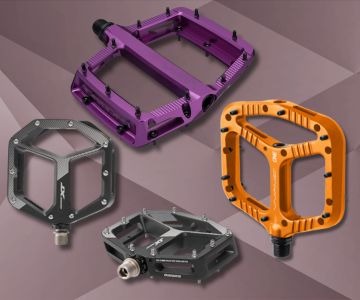

Flat Pedals
The same kind you’d find on most commuter or MTB bikes, flat pedals are great for beginners, casual riders, and urban use. They work with any shoe and let you easily stop, start, and put a foot down when needed. Many gravel and all-road riders stick with flats, especially for unpredictable terrain.
Best for:
Beginners
Commuting & city riding
Gravel/adventure riders who value quick foot-down control
Chamois Shorts vs. Bib Shorts: Comfort Where It Counts
If you're spending any time in the saddle—especially on drop bar bikes—a good pair of padded cycling shorts (a.k.a. a chamois) is essential. But once you’re ready to invest, the next question is: bibs or no bibs?
Standard Chamois Shorts
These look like typical athletic shorts but include a built-in chamois pad. They're easy to put on, take off, and use with casual tops or jerseys.
Pros:
Easy on/off
Great for shorter rides or commuting
Often more affordable
Cons:
Waistbands can dig in or shift
Less secure fit, especially during long rides
Best for:
Beginner riders
Casual and urban cycling
Commuters who want comfort without the full kit
Bib Shorts
Bib shorts feature shoulder straps instead of a waistband, which means they stay in place better and offer a smoother fit. No waistband also means no digging or bunching during long rides.
Pros:
No waistband = more comfort, especially on long rides
Better fit and support
Looks cleaner under jerseys
Cons:
A bit trickier in the bathroom
Slightly higher cost
Best for:
Endurance and gravel riders
Road cyclists
Anyone planning longer or more frequent rides
Quick Tip: No underwear under your chamois! It’s designed to sit directly against your skin to reduce chafing and improve breathability.
Bonus tip: If you're going on longer rides, especially in warm weather, consider using chamois cream. It helps reduce friction, prevent saddle sores, and keep things comfortable hour after hour.
Still Not Sure?
Come in and talk to our experts! We’ll help you:
Understand your riding needs
Test ride multiple bikes
Get the right size and fit
Explore e-bike and accessory options
Your next adventure starts with the right ride.
